Airbag Man Defender Intelliride Airbag Kit

Height Range Automatic Mode         Front    Rear
Ride Height up to Raised Height         40mm    40mm
Ride Height down to Access Height   -80mm    -80mm

Height Range Manual Mode
Maximum Height from Ride Height      50mm    50mm
Minimum Height from Ride Height     -100mm    -100mm

Why Intelliride ECAS?

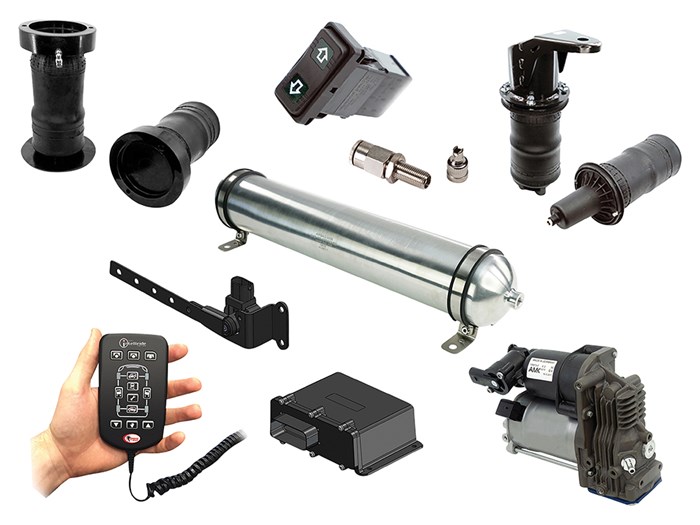

This front and rear axle full air suspension kit incorporates on-board air control which is a fully automatic Electronically Controlled Air Suspension (ECAS) System. When fitted, the system provides comfort while maintaining a programmed ride height irrespective of the load. Multiple vehicle heights are available at the push of a button.

The on-board system has automatic load levelling at each height which continuously monitors inputs and component performance as a means of increasing safety and durability. The on-board system recognises and responds accordingly to potholes, cross-articulation and extended turns. This intelligence prevents unnecessary activity and air consumption, it even recognises unachievable heights, assisting in the prevention of possible damage above or below the vehicle.
