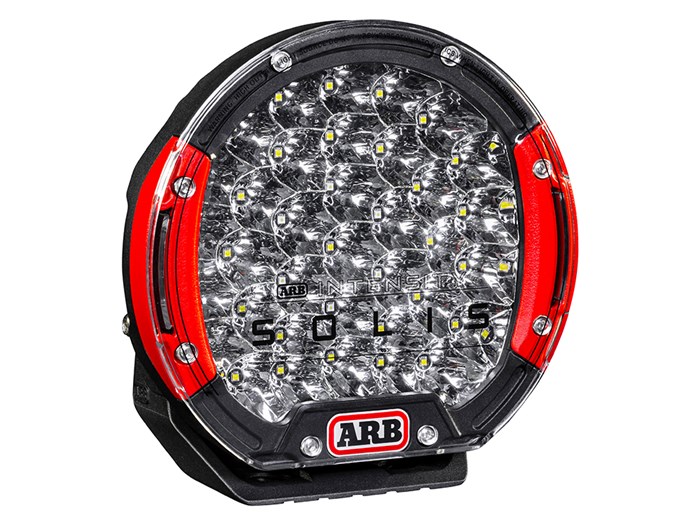

ARB Intensity Solis 36 Flood Light

The ARB Intensity Solis provides a whole new level to the ARB Intensity range of driving lights and bars. Introducing digital dimming control and providing a massive 1 lux @ 1,032m for an individual spot beam via the 30 x 4W combined with 6 x 10W high output OSRAM LEDS provides a smooth driving beam.

• Revolutionary update of the Intensity light
• New colour design and shape
• New inter-changable bezels
• Superior grade LEDs and electronics
• Digital dimming control
• Unique ARB engineered reflectors

Input – 10 – 30V
Power – 165W
Current draw – 12.4A @132.V
Output – raw – 18,178 lumens
Output – effective – 8,333lumens
1 Lux reading – 729m
Spread – 11 degrees
Input cable length – 450mm
Operating temperature – -40•C to +65*C
Colour temperature – 5,700 Kelvin
Weight – 3.3kg
Connector – 4-pin AT waterproof plug
Dimensions (W x H x D) – 225 x 220 x 120mm

High Pressure Die Cast Aluminium Bracket & Housing

• Scalloped back – more bar fitment possible
• Improved heatsink and UV stabilization
• Adjustable bracket
• Pressure tested breather

Brackets

• Various mounting options
• Vertical & horizontal mounting
• Simplified fitting
• Torx security fasteners

Solis – Touchpad

• Silicone touch pad
• Intuitive feel touch – no eyes off the road
• Simple 3 button control
• Easy fitment
• Cable can be directed at back or out bottom
• Percentage changes – 5%, 25%, 50%, 75%, 100%
• Silicone sleeved for durability and protection
• 58mm (L) x 10mm (D) x 25mm
• The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected

Compatible With Linx

Solis can be fully integrated into LINX. The customer will need to purchase a patch lead that is simple to install + set up the new light and its features within the LINX system. Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis icons and function.

Available in UK only.
