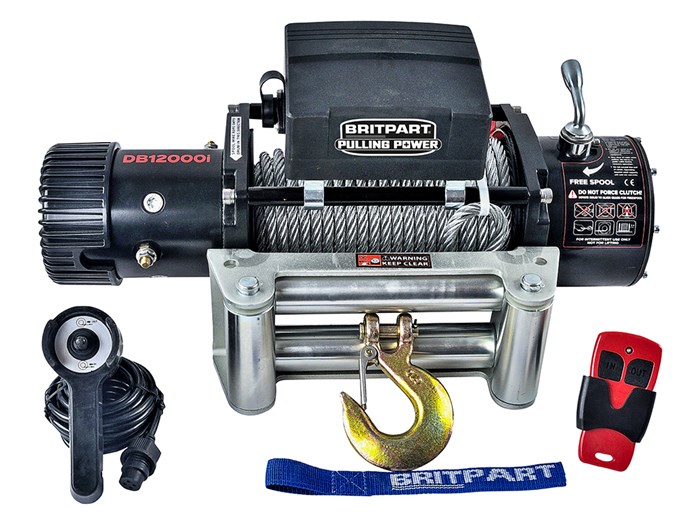

Britpart Pulling Power Winch

Powerful and reliable electric winches.

If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

These powerful and reliable electric winches all feature – a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.

Features

• 3.6Kw (4.8Hp) heavy-duty series wound DC motor
• Weather and dustproof contactor controls for longer life and improved amperage draw
• Planetary gear system for fast line speed
• Automatic load-holding brake
• Free spooling
• Power in and power out
• Low electric current
• Hardened drum
• 24 month warranty

Specification
Rated line pull – single line – 12,000lbs  /  5,443kgs
Gear reduction ratio – 294:1
Motor (series wound) – 4.8Hp  /  3.6Kw
Drum size (D x L) – 2.64 x 9"  /  67 x 228mm
Cable supplied – 3/8" x 100'  /  9.53mm x 30.5m – Galvanised aircraft cable with break force 14,400lbs
Winch Motor – Rated at IP67 for waterproofness & dustproofness
Winch Solenoid – Rated at IP54 for dustproofness
Overall dimension (L x W x H) – 21.57 x 6.57 x 11.77"  /  548 x 167 x 299mm
Net weight – 94.8lbs  /  43.0kgs
Mounting bolt pattern – 10 x 4.5"  /  254 x 114.3mm

A full range of winching equipment is also available from Britpart – including; safety gear, bumpers, chocks, hooks, shackles & ropes.

Together with the winches you’ll be able to ‘Get to where you want to go!’

Important – When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch – DB1014
