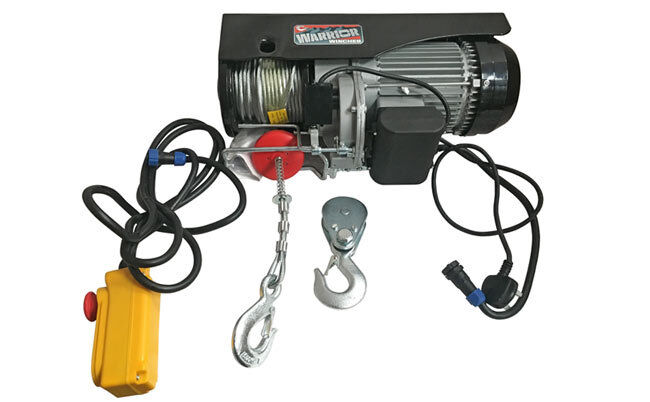

Warrior 500kg 240v Electric Gantry Lifting Hoist ideal for
Workshop/Garage
Our compact, general purpose 240v
electric hoist is ideal for all manner of lifting and pulling work. This
model is now fitted with a fantastic new quick release air socket on the hand
control lead means that the hand control can be quickly and easily unplugged
and replaced by an optional wireless control (sold separately).
The included mounting enable easy installation onto box section of up to 46mm x
46mm. This hoist is fitted with a 2.75m long wired hand control with
power in & power out facility. Conforms to BS EN14492 standard with built in
upper and lower limit switches and thermal overload on the motor for added
safety.
The duty cycle of this winch is S3 – 20% on a 10 minute cycle. Simply
translated this means that the unit can be used continuously for 2 minutes
before an 8 minute cool down period is required. The load holding break
will ensure that your load is held safely during down time.
Standard Features:
♦ Line Capacity: 250kg
single cable, & 500kg double cable
♦ Lift Height: 18m
metres single cable & 9 metres double cable (Using Included Pulley Block)
♦ Motor:
Reversible 1000W 240v 50Hz Motor – Powers In and Out (Standard UK 3-Pin Plug –
Requires 240v 50Hz BS Power Supply)
♦ Warranty: 12
Month Return to Base
Accessories:
♦ Wired Hand Control: 2.75m Wired
Hand Control with Stop Button
♦ Wireless Control:
Available as an optional extra
♦ Mountings: Included
for Standard 46mm2 Box Section installations
Also Includes:
♦ 3-Pin UK
Plug on 650mm Flex
♦ Pulley
Block for double line operation
♦
Instruction Manual
Other Information:
♦ Dimensions: 390mm L
x 150mm D x 240mm H (510mm H inc mountings, cable and hook)
♦ Approx. Shipping Weight: 18kg
♦ Lifting Speed: 8m/min
single cable & 4m/min double cable
♦ Casing Colour:
Black OR RE
