WARRIOR 9500lb SAMURAI 12v PERFORMANCE OFFROAD WINCH - 950VS12

WARRIOR 9500lb SAMURAI 12v PERFORMANCE OFFROAD WINCH – 950VS12

£435.95

Availability: 2 in stock

SKU: 950VS12 Category:

Brand new

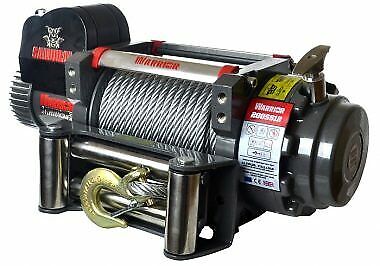

– WARRIOR SAMURAI S9500  12v Winch


The WARRIOR SAMURAI
S9500 is a Compact, Tough winch with Heavy duty sealed contactors and Stainless
steel fairleads and fittings ensure its protected against the elements. The Latest version 2 of the S9500 features the new high output 4.6 Hp series wound motor and four stage planetary
gearing for extra strength and durability. Good for all off road needs.



Features:

  1. *4 Pin Waterproof Connector
  2. *Solid Brass Contacts Direct to the Motor
  3. *Silver Copper Motor with *Copper Brush Holders
  4. *Chip Resistant Powder     Coated Finish
  5. *Extensive Waterproof Sealing to IP68 Standard
  6. *Removable Heavy Duty     Hook
  7. *Wireless 2.4G Upgraded   Remote (12V only)
  8. *Stainless Steel 4 Way   Fairleads
  9. *HRC50 Full Steel Gears
  10. *Revolutionary Design *External Brake
  11. *Laser Etched Extruded     Aluminium Tie Bars
  12. *600 amp Silver Tip   Contactor

Technical
Specification:

Weight:

40kgs

Voltage:

12v DC

Capacity:

9500 lb

Motor:

Powerful, Reliable Reversible
4.6hp Heavy Duty Series Wound Motor

Gearing:

Specially treated 4 stage
planetary

Gear
Ratio:

210:1

Rope:

29m of 8.0mm galvanized
aircraft cable

Dimensions
(LxWxH):

560mm x 155mm x 220mm

Wireless
Control:

Included

Mounting
Plate:

Not
Included

Line
Speed – No Load:

5.4 m/min

Line
Speed – Full Load:

1.8 m/min

Amp
Draw – No Load:

80 amps

Amp
Draw – Full Load:

360 amps



Custom Bundle

No
Modified Item

No
Non-Domestic Product

No
Placement on Vehicle

Front
Manufacturer Part Number

950VS12
Brand

warrior
Type

Body Shell

Item Compatibility List

Car Make Model Cars Year Variant BodyStyle Cars Type Engine Notes
Land Rover Defender 1990 Diesel Off-Road Vehicle AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1990 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1990 Petrol Off-Road Vehicle AWD -- L316 2.5 4x4 2495cc 61KW 83HP 17 H
Land Rover Defender 1991 Diesel Off-Road Vehicle AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1991 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1991 Petrol Off-Road Vehicle AWD -- L316 2.5 4x4 2495cc 61KW 83HP 17 H
Land Rover Defender 1992 Diesel Off-Road Vehicle AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1992 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1992 Petrol Off-Road Vehicle AWD -- L316 2.5 4x4 2495cc 61KW 83HP 17 H
Land Rover Defender 1993 Diesel Off-Road Vehicle AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1993 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1993 Petrol Off-Road Vehicle AWD -- L316 2.5 4x4 2495cc 61KW 83HP 17 H
Land Rover Defender 1994 Diesel Off-Road Vehicle AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1994 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1994 Petrol Off-Road Vehicle AWD -- L316 2.5 4x4 2495cc 61KW 83HP 17 H
Land Rover Defender 1995 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1995 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1996 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1996 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1997 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1997 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1998 Diesel Off-Road Vehicle AWD -- L316 2.5 TDI 4x4 2495cc 83KW 113HP 11 L;16 L
Land Rover Defender 1998 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1998 Petrol Off-Road Vehicle AWD -- L316 2.8 4x4 2793cc 140KW 190HP M52 B28
Land Rover Defender 1998 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 1999 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 1999 Petrol Off-Road Vehicle AWD -- L316 2.8 4x4 2793cc 140KW 190HP M52 B28
Land Rover Defender 1999 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2000 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 2000 Petrol Off-Road Vehicle AWD -- L316 2.8 4x4 2793cc 140KW 190HP M52 B28
Land Rover Defender 2000 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2001 Diesel SUV AWD -- L316 2.5 D 4x4 2495cc 51KW 69HP 12 J
Land Rover Defender 2001 Petrol Off-Road Vehicle AWD -- L316 2.8 4x4 2793cc 140KW 190HP M52 B28
Land Rover Defender 2001 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2002 Petrol Off-Road Vehicle AWD -- L316 2.8 4x4 2793cc 140KW 190HP M52 B28
Land Rover Defender 2002 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2003 Petrol Off-Road Vehicle AWD -- L316 2.8 4x4 2793cc 140KW 190HP M52 B28
Land Rover Defender 2003 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2004 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2005 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2006 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Defender 2007 Petrol Off-Road Vehicle AWD -- L316 3.9 V8 4x4 3947cc 136KW 185HP 37 L
Land Rover Discovery 1989 Diesel SUV AWD -- LJ 2.5 TDI 4x4 2495cc 83KW 113HP 12 L;17 L;19 L;21 L
Land Rover Discovery 1990 Diesel SUV AWD -- LJ 2.5 TDI 4x4 2495cc 83KW 113HP 12 L;17 L;19 L;21 L
Land Rover Discovery 1991 Diesel SUV AWD -- LJ 2.5 TDI 4x4 2495cc 83KW 113HP 12 L;17 L;19 L;21 L
Land Rover Discovery 1992 Diesel SUV AWD -- LJ 2.5 TDI 4x4 2495cc 83KW 113HP 12 L;17 L;19 L;21 L
Land Rover Discovery 1993 Diesel SUV AWD -- LJ 2.5 TDI 4x4 2495cc 83KW 113HP 12 L;17 L;19 L;21 L
Land Rover Discovery 1993 Petrol SUV AWD -- LJ 4.0 4x4 3947cc 134KW 182HP 35 D;36 D
Land Rover Discovery 1994 Diesel SUV AWD -- LJ 2.5 D 4x4 2496cc 90KW 122HP 17 L;19 L;22 L
Land Rover Discovery 1994 Diesel SUV AWD -- LJ 2.5 TDI 4x4 2495cc 83KW 113HP 12 L;17 L;19 L;21 L
Land Rover Discovery 1994 Petrol SUV AWD -- LJ 4.0 4x4 3947cc 134KW 182HP 35 D;36 D
Land Rover Discovery 1995 Diesel SUV AWD -- LJ 2.5 D 4x4 2496cc 90KW 122HP 17 L;19 L;22 L
Land Rover Discovery 1996 Diesel SUV AWD -- LJ 2.5 D 4x4 2496cc 90KW 122HP 17 L;19 L;22 L
Land Rover Discovery 1997 Diesel SUV AWD -- LJ 2.5 D 4x4 2496cc 90KW 122HP 17 L;19 L;22 L
Land Rover Discovery 1998 Diesel SUV AWD -- LJ 2.5 D 4x4 2496cc 90KW 122HP 17 L;19 L;22 L
