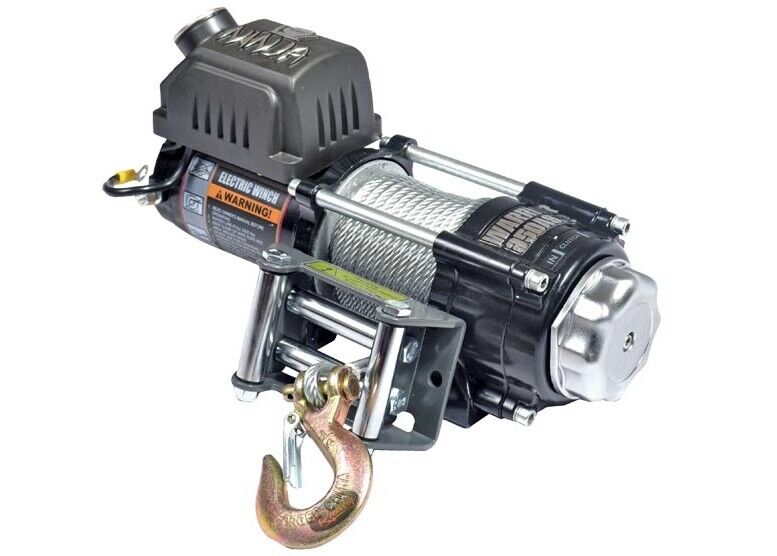

WARRIOR NINJA 3500 12V ELECTRIC WINCH

THE WARRIOR NINJA C3500 IS AN OUTSTANDING UTILITY WINCH AND WITH ITS UNIQUE FREESPOOL SYSTEM IT OUTPERFORMS ITS CHALLENGERS.  STANDARD SPECIFICATION INCLUDES A SEALED POWERFUL MOTOR, FULL STEEL GEARING, HEAVY DUTY SEALED SOLENOID, HEAVY DUTY WATERTIGHT CONTACTORS AND CONTROLLER SOCKET.  FOR ATV APPLICATIONS A HANDLE BAR CONTROL IS AVAILABLE AS AN OPTIONAL EXTRA.

STANDARD FEATURES:

♦ LINE CAPACITY: 3,500LB

♦ ROPE: 12.8M OF 5.4MM STEEL CABLE WITH CLEVIS HOOK

♦ MOTOR: 1.95HP / 1.37KW

♦ GEARING: 170:1

♦ WARRANTY: 12 MONTH RETURN TO BASE

ACCESSORIES:

♦ WIRED HAND CONTROL: 3M WIRED HAND CONTROL

♦ WIRELESS CONTROL: AVAILABLE AS OPTIONAL EXTRA

♦ MOUNTING PLATE: INCLUDED

♦ FAIRLEAD: 4-WAY ROLLER FAIRLEAD

♦ MOUNTING BOLTS: INCLUDED FOR STANDARD INSTALLATIONS

ALSO INCLUDES:

♦ 1.6M HEAVY DUTY BATTERY CABLES (MAY NEED EXTENDING DEPENDANT ON APPLICATION)

♦ 3T HOOK TYPE PULLEY BLOCK

♦ INSTRUCTION MANUAL

OTHER INFORMATION:

♦ DIMENSIONS: 346MM L X 113MM D X 118MM H

♦ MOUNTING BOLT PATTERN: 79.5MM

♦ APPROX. SHIPPING WEIGHT: 9.3KG
